Seamless SDK (Payment Web)

Follow this step-by-step guide to implement and enable Yuno's Seamless Web SDK payment functionality in your application.

👍

Recommended SDK

We recommend using the Web Seamless SDK for a smooth integration experience. This option provides a flexible payment solution with pre-built UI components and customization options.

📘

Should I use Lite or Full Seamless SDK?

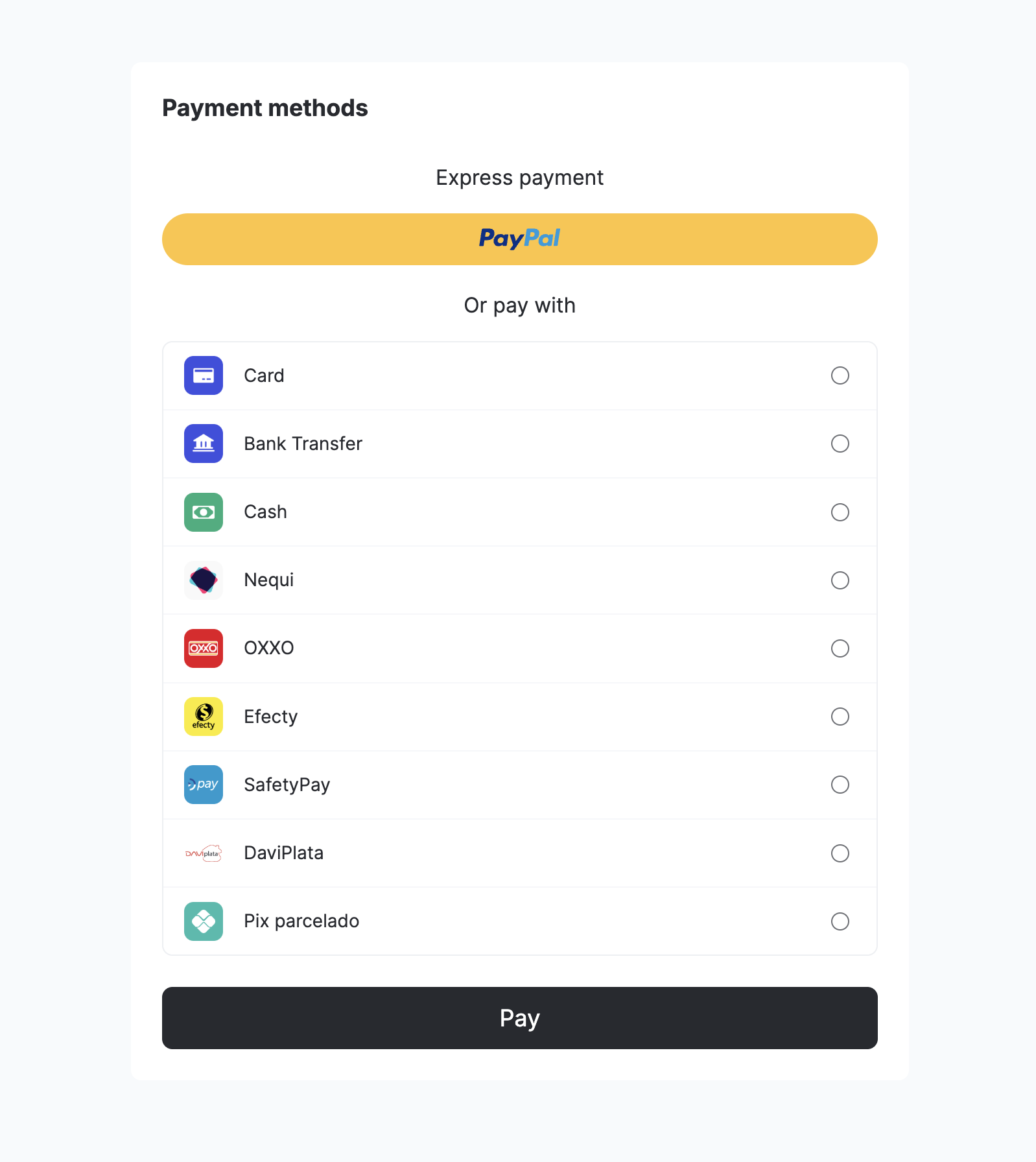

Use the Full Seamless SDK for automatic payment method listing and separate display of payment buttons (like PayPal). The Lite Seamless SDK gives you more control over how payment methods are displayed and organized.

Step 1: Include the library in your project

The integration guide provides three flexible methods:

  1. Direct HTML script inclusion
  2. Dynamic JavaScript injection
  3. NPM module installation

Choose the integration method that best suits your development workflow and technical requirements. After completing the SDK integration, you can proceed with the following steps to implement the Seamless functionality.

📘

TypeScript Library

If you are using TypeScript, Yuno offers a library that provides access to all available methods in the Yuno Web SDK.

Step 2: Initialize SDK with the public key

Initialize the Yuno SDK in your JavaScript application by providing a valid PUBLIC_API_KEY:

const yuno = await Yuno.initialize(PUBLIC_API_KEY);
📘

Credentials

See the credentials page for more information: https://docs.y.uno/reference/authentication

Step 3: Create a checkout session

To initialize the payment flow, create a new checkout_session using the Create checkout session endpoint.

  • First, create a customer or retrieve an existing customer ID
  • Include it when creating the checkout_session

Key Parameters

ParameterRequiredDescription
amountYesThe primary transaction amount object containing currency (ISO 4217 code) and value (numeric amount in that currency).
alternative_amountNoAn alternative currency representation of the transaction amount with the same structure as amount (currency and value). Useful for multi-currency scenarios, such as displaying prices to customers in their preferred currency (e.g., USD) while processing the payment in the local currency (e.g., COP).
📘

onPaymentMethodSelect Event

For all APMs, including Google Pay, Apple Pay, and PayPal, onPaymentMethodSelected is triggered as soon as the customer chooses the payment method (before the payment flow begins). Define onPaymentMethodSelected in startSeamlessCheckout before mountSeamlessCheckout.

Step 4: Start the checkout process

Use the configuration below to provide a seamless and user-friendly payment experience for your customers:

yuno.startSeamlessCheckout({
  checkoutSession: "438413b7-4921-41e4-b8f3-28a5a0141638",
  elementSelector: "#root",
  countryCode: "US",
  language: "en",
  showLoading: true,
  issuersFormEnable: true,
  showPaymentStatus: true,
  onLoading: (args) => console.log(args),
  renderMode: {
    type: "modal",
    elementSelector: {
      apmForm: "#form-element",
      actionForm: "#action-form-element",
    },
  },
  card: {
    type: "extends",
    styles: "",
    cardSaveEnable: false,
    texts: {},
  },
  texts: {},
  async yunoCreatePayment(oneTimeToken, tokenWithInformation) {
    await createPayment({ oneTimeToken, checkoutSession });
    yuno.continuePayment({ showPaymentStatus: true });
  },
  yunoPaymentMethodSelected(data) {
    console.log("Payment method selected:", data);
  },
  yunoPaymentResult(data) {
    console.log("Payment result:", data);
    yuno.hideLoader();
  },
  yunoError(error, data) {
    console.error("An error occurred:", error);
    yuno.hideLoader();
  },
});

When using startSeamlessCheckout, specify the callbacks to handle payments. You can also customize the checkout interface using the texts objects.

Parameters

Configure the seamless checkout with the following options:

ParameterDescription
checkoutSessionRefers to the current payment's checkout session. Example: 438413b7-4921-41e4-b8f3-28a5a0141638.
elementSelectorThe HTML element where the checkout will be rendered.
countryCodeThis parameter specifies the country for which the payment process is being set up. Use an ENUM value representing the desired country code. You can find the full list of supported countries and their corresponding codes on the Country Coverage page.
languageDefines the language to be used in the payment forms. You can set it to one of the available language options:
  • es (Spanish)
  • en (English)
  • pt (Portuguese)
  • fil (Filipino)
  • id (Indonesian)
  • ms (Malay)
  • th (Thai)
showLoadingControls the visibility of the Yuno loading/spinner page during the payment process. Default: true.
onLoadingRequired to receive notifications about server calls or loading events during the payment process.
issuersFormEnableEnables the issuer's form (e.g., a list of banks). Default: true.
showPaymentStatusShows the Yuno Payment Status page, which is useful when continuing a payment. Default: true.
showPayButtonControls the visibility of the pay button in the customer or card form. Default: true.
renderModeSpecify how and where the forms will be rendered. The options available are:
▪️ type: modal (default)
▪️ type: element - If you select element, you must inform the elementSelector to specify where the form should be rendered.
cardDefines the configuration for the card form. It contains settings like render mode, custom styles, and save card option.
textsAllows you to set custom button texts for card and non-card payment forms.
yunoCreatePaymentPlaceholder function for creating a payment. This function will not be called but should be implemented.
yunoPaymentMethodSelectedCallback invoked when a payment method is selected, along with the method's type and name.
yunoPaymentResultCallback called after the payment is completed, with the payment status (e.g., SUCCEEDED, ERROR).
yunoErrorCallback invoked when there is an error in the payment process. Receives error type and optional additional data.
📘

Customer and Merchant-Initiated Transactions

Payments can be initiated by the customer (CIT) or by the merchant (MIT). You find more information about their characteristics in Stored credentials.

The step-by-step on this page refers to a customer-initiated transaction without the recurrence option. Typically, it's used in one-time online purchases, in-store purchases, ATM withdrawals, etc.

Step 5: Mount the SDK

To present the checkout process based on the selected payment method, use the yuno.mountSeamlessCheckout() function. This step ensures the SDK is properly mounted on your chosen HTML element.

yuno.mountSeamlessCheckout({
  paymentMethodType: PAYMENT_METHOD_TYPE,
  vaultedToken: VAULTED_TOKEN,
});

See the Payment type page to view the complete list of payment method types you can use when mounting the SDK.

The vaultedToken is optional. It represents a previously enrolled payment method. If you provide the vaultedToken, the user will not be required to provide the payment information again since it was provided in a previous transaction.

After mounting, you must start the checkout flow by calling yuno.startPayment(). If you skip this call, the payment form will not open.

Step 6: Start the payment flow (Required)

Call yuno.startPayment() immediately after yuno.mountSeamlessCheckout() to open the selected payment method UI:

yuno.mountSeamlessCheckout({
  paymentMethodType: PAYMENT_METHOD_TYPE,
  vaultedToken: VAULTED_TOKEN,
});

yuno.startPayment();

Alternatively, you can trigger the start from a user action such as a button click:

const payButton = document.querySelector('#button-pay');
payButton.addEventListener('click', () => {
  yuno.startPayment();
});
📘

Demo App

In addition to the code examples provided, you can access the Demo App for a complete implementation of Yuno SDKs. The demo app includes working examples of all Yuno SDKs and can be cloned from the GitHub repository.

Related Links

Find more information and version history for the Web SDK below:

  • Web SDK v1.3: The latest version with improved UI grouping and multilingual support.
  • Web SDK v1.2: Updated continuePayment method and optional initialization parameters.
